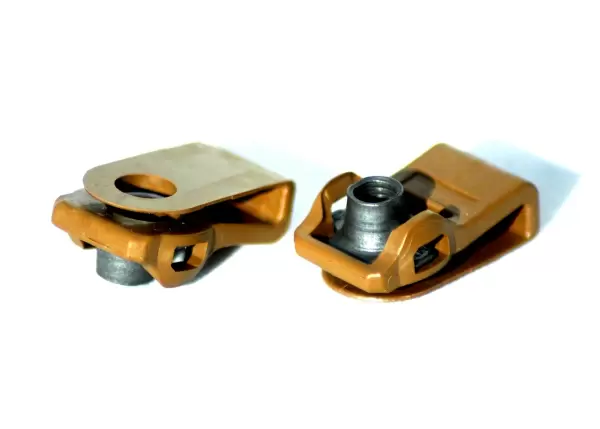

Airbus Clipnuts EN6131-3C1


0
Quantity:


Marketing Masters' Torlon® Clip Nuts: The Ultimate Performance Fastener at the Lowest Possible Price.

Features
  • Designed and manufactured specifically for Airbus, Marketing Masters’ EN6131 Clip nuts are the Standard throughout Airbus’ Fleet of Aircraft, used to secure flooring and install decorative trim.
  • The Airbus part number EN6131-3C1, is part of the Airbus EN6131 Clip Nut Standard.
  • Airbus designated Marketing Masters’ Torlon® composite clip nuts EN6131 as the NEW Standard in 2002, replacing the old Airbus Metal Standard ABS0365.
  • Clip Nut Styles, Specs and Approvals, Click here
  • Clip Nut Installation Video. Click here
Specifications
  • Panel Thickness (Min.) (in.): .020
  • Panel Thickness (Max.) (in.): .138
  • Nut Thread Size: 10-32
  • Nut Material Type: CRES A-286, DRY LUBE
  • Edge Margin (in.): .559
  • Clip Width (in.): .587
