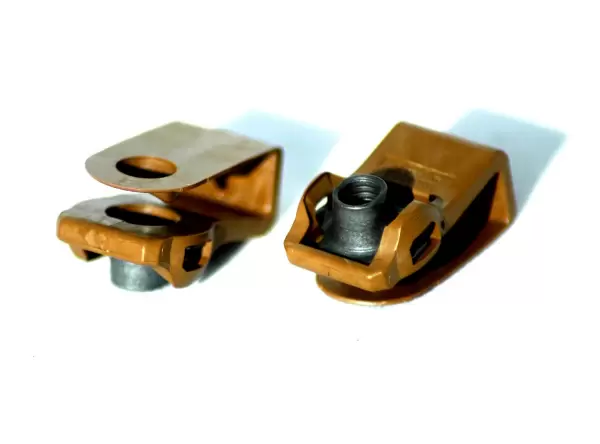

Bombardier Clipnuts B0204078-3CM2


0
Quantity:

Features
  • Designed and manufactured specifically for Bombardier as the standard, the B0204074 & B0204078 composite Clip nuts are used throughout Bombardier’ current fleet of aircraft, from securing flooring to installing decorative trim.
  • The Bombardier Clip Nut B0204078-3CM2, is part of the Bombardier B0204078 clip nut standard.
  • Bombardier designated Marketing Masters’ Torlon® composite clip nuts as their Standard.
  • Clip Nut Installation Video. Click here
Specifications
  • Panel Thickness (Min.) (in.): .138
  • Panel Thickness (Max.) (in.): .256
  • Nut Thread Size: 10-32
  • Nut Material Type: CRES A-286, DRY LUBE
  • Edge Margin (in.): .559
  • Clip Width (in.): .587
